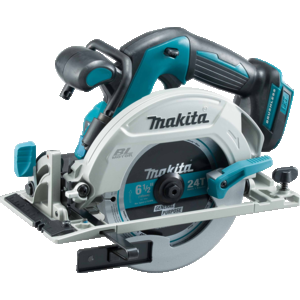

Makita DHS680Z 18v Brushless 165mm Circular Saw Body Only

The Makita DHS680Z Circular Saw 18v Body Only features a robust brushless DC motor and automatic torque drive system, which adjusts the motor's torque based on the cutting load.

The DHS680Z Makita Circular Saws boast several notable features. Firstly, they are equipped with a magnesium base that allows for bevel cutting capacity ranging from 45 degrees to 50 degrees. Additionally, these saws come with twin LED work lights that have a pre-glow function, ensuring optimal visibility during operation. Furthermore, a large lock off lever is included for added safety. The saws also feature an LED indicator panel, which displays three indicators for battery fuel gauge, auto torque drive, and total overload protection.

User Benefit:

  • Automatic Speed Control: Automatically changes cutting speed according to load condition
  • Electric brake
  • Soft start
  • Electronic current limiter for overload protection.
  • Tool Hanger
  • Twin LED job light
  • Battery fuel gauge
  • Rear dust exhaust port
  • Large lock off lever.
  • Compact and lightweight design
  • Ergonomic soft grip.
  • Blower function to clear wood dust from cutting line.
  • Larger base than current models for more stable operation

Technical Specification:

  • Blade Diameter - 165mm
  • Max Cut @ 0&ordm - 57mm
  • Max Cut @ 45&ordm - 41mm
  • Max Cut @ 50&ordm - 37mm
  • Bore Diameter - 20mm
  • Noise sound pressure - 83dB(A)
  • Noise sound power - 94dB(A)
  • Noise K factor - 3dB(A)
  • Maximum Output - 680w
  • No Load Speed - 5,000rpm
  • Vibration K factor - 1.5m/sec&sup2
  • Vibration: Cutting Wood - 2.5m/sec&sup2
  • Net weight - 3.3kg

What's in the box

  • 1x DHS680Z Circular Saw Body Only
  • 1x Saw Blade B-85101
  • 1x Guide Rule 164095-8
  • 1x Hex Wrench 783217-7
  • 1x Dust Extraction Adaptor

This product is supplied as a Bare Unit, no Battery or Charger is supplied.


Makita 3 Year Warranty

The 3 year warranty applies to tools purchased on or after July 1st 2012. This excludes batteries, chargers, outdoor power equipment, airtools and accessories. These are all supplied with a standard years warranty.

Tools must be registered online within 30 days of purchase to qualify for the warranty extension otherwise a standard 1 year warranty will apply.

Any warranty claims outside of the 1st year but within the second or 3rd must be dealt with directly by Makita.

What if my product becomes faulty?

Any warranty claim must be logged within the warranty period. This involves sending the tool complete packaged to a local dealer or Authorised Service agent with the 3 year certificate and the original sales receipt.

Alternatively you can send it to Makita UK Ltd in Milton Keynes. To arrange this please contact Makita UK on Tel: 01908 211 678, or email:

Subject to inspection, the product will be repaired free of charge. Costs may be incurred for any warranty claims that are deemed invalid.
