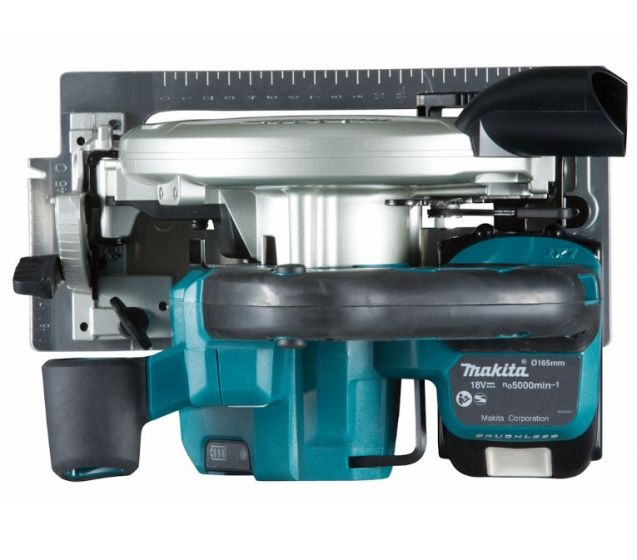

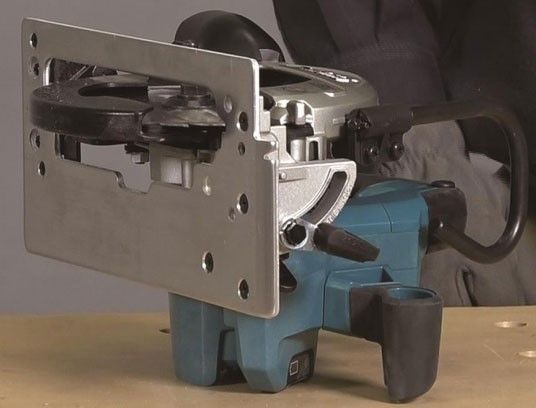

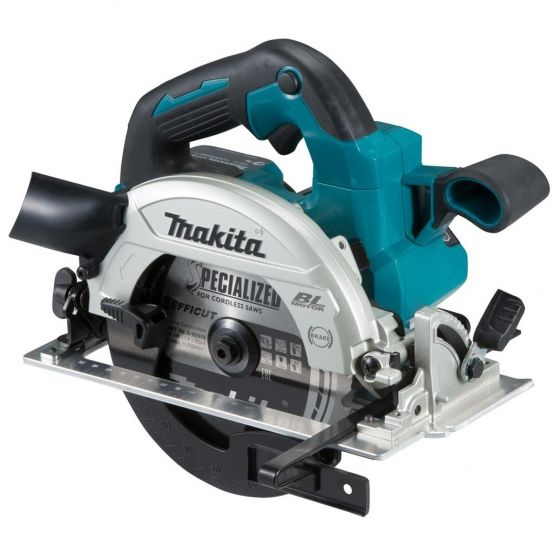

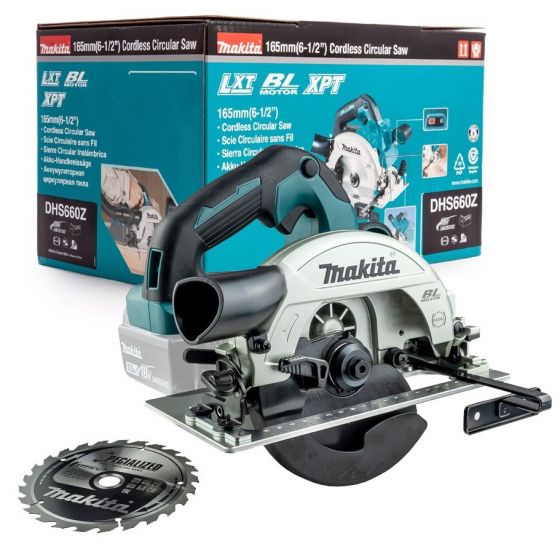

Makita DHS660Z 18v LXT Brushless Circular Saw 165mm Body Only

Makita DHS660Z 18v LXT Brushless Circular Saw 165mm Body Only

The Makita DHS660 Brushless Circular Saw has a indication lamp for Automatic Torque Drive Technology (ADT). If high torque a green is light on, high speed the lights out and overload alert the light blinks green. Featuring a new compact and lightweight design with a side mounted battery means the DHS660 has a lower centre of gravity giving you more control.The ergonomic design also gives the user more comfort for longer time of use.

Replaces DHS630Z.


  • Brushless motor
  • LED job light

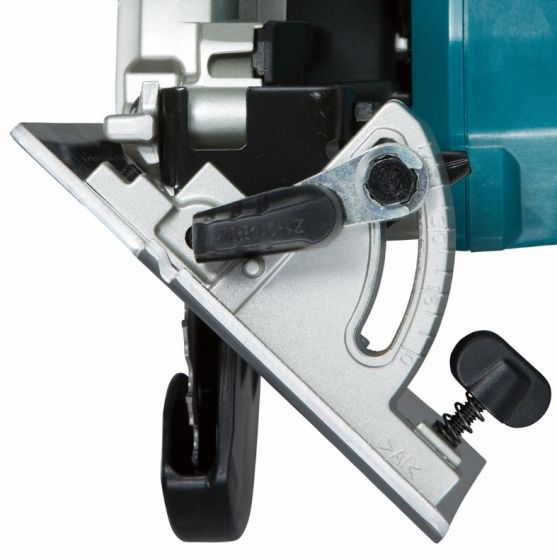

  • Aluminium base with 45 and 50 degrees bevel cutting capacity
  • Soft start for smooth start-up
  • Blower function blows sawdust off cutting line
  • Rear-facing exhaust port
  • Large lock off lever for ultimate safety
  • Automatic Torque Drive Technology: Automatically changes the cutting speed according to load condition for optimum operation
  • Indication lamp for ADT
  • Improved visibility of blade tip
  • Easy-to-read scale markings for easier adjustments
  • Ergonomic soft grip


  • Voltage: 18v
  • Blade Diameter: 165 mm
  • Bore Diameter: 20 mm
  • Max Cutting Capacity at 0°: 57 mm
  • Max Cutting Capacity at 45°: 41 mm
  • Max Cutting Capacity at 50°: 37 mm
  • No Load Speed: 5000 rpm
  • Weight: 2.9 – 3.2 kg


  • Vibration Cutting Wood: 2.5 m/s²
  • Vibration K Factor: 1.5 m/s²
  • Sound Pressure: 93 dB(A)
  • Sound Power Level: 104 dB(A)
  • Sound K Factor: 3 dB(A)
