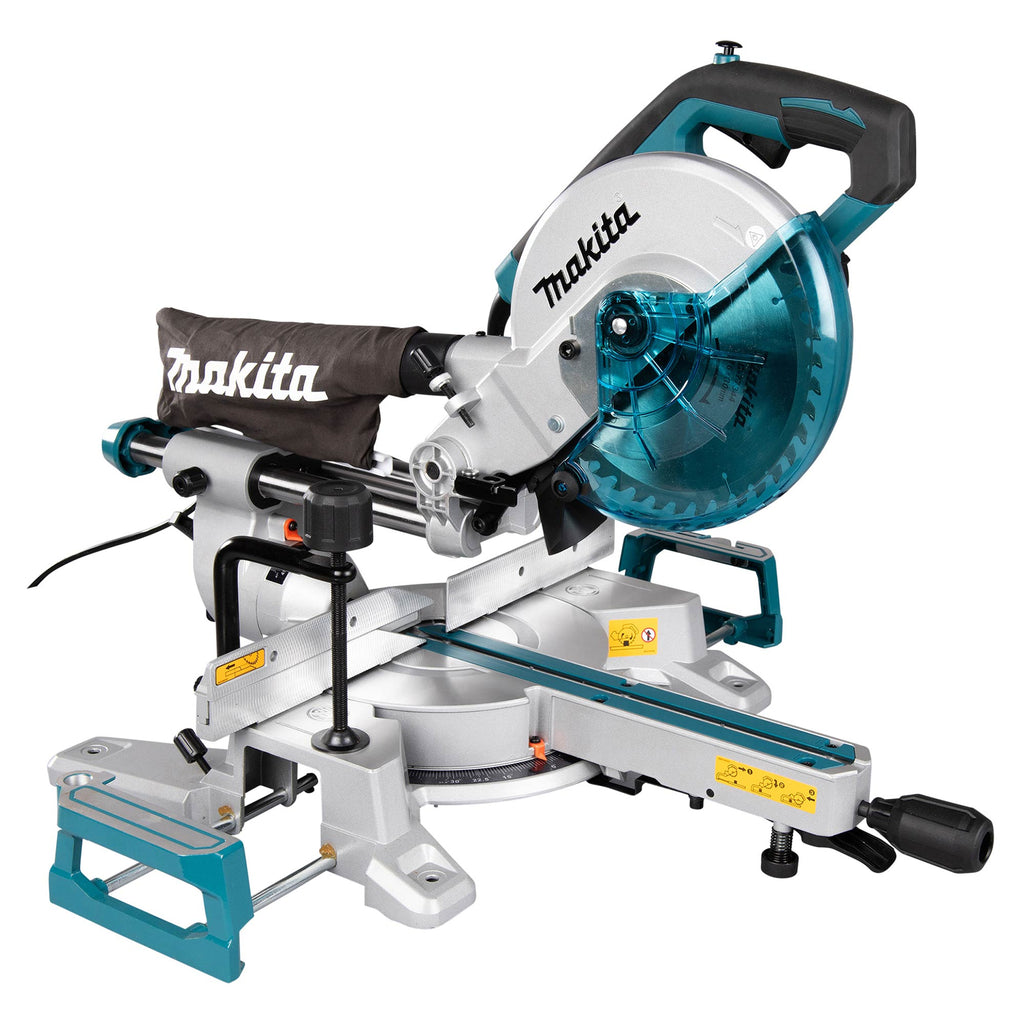

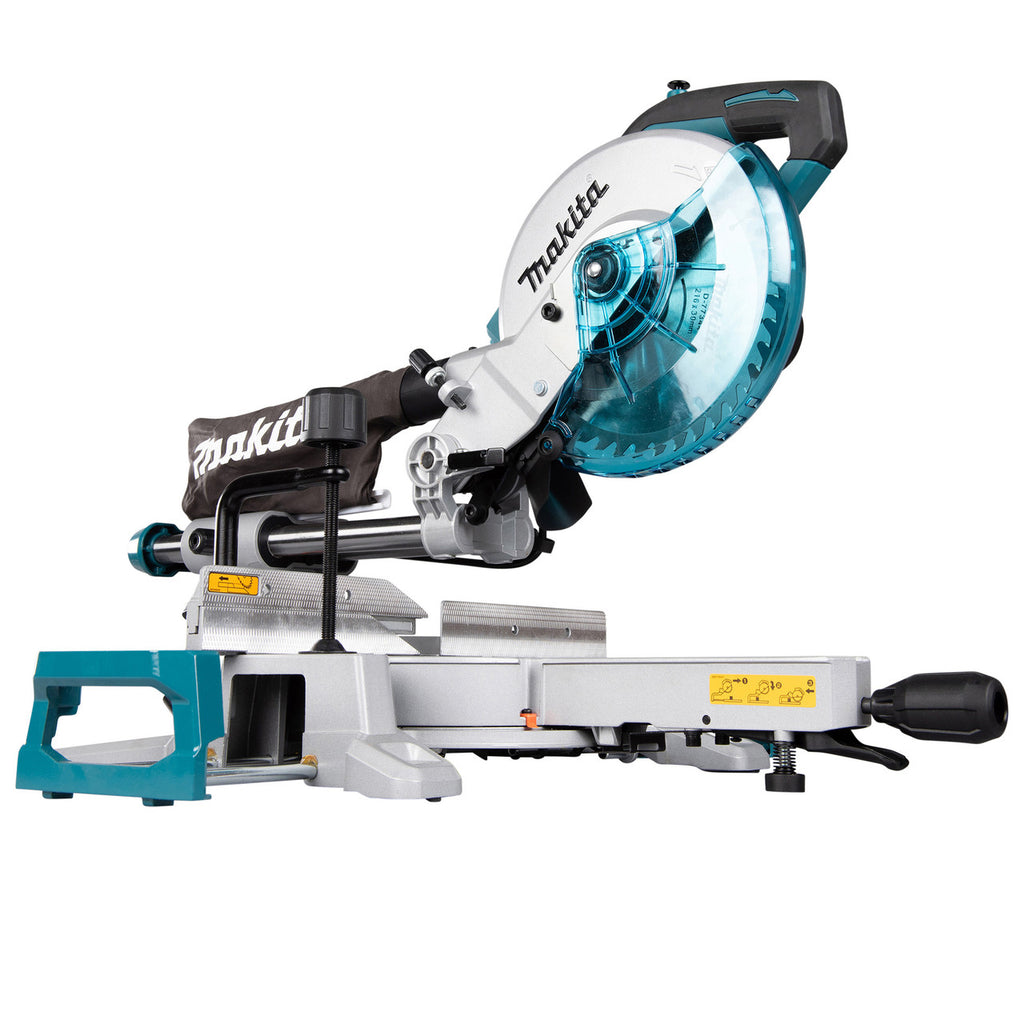

Makita LS0816F 216mm Sliding Compound Mitre Saw 110V

The 110V Makita LS0816F 216mm Sliding Compound Mitre Saw has a dust extraction capability anda high cutting capacity

The Makita LS0816F/1 is a 216mm diameter 110V Slide Compound Saw, powered by direct drive motor, with soft start, to deliver 1200 input wattage and up to 5,000 rpm. The LS0816F/1 is equipped with an aluminium die-cast base, lock-off function, slide style sub fence (left side only), pull out sub-base to enable the cutting of wider workpieces, LED job light designed to cast a shadow of the saw blade onto the workpiece for an exact cutting line, forced dust collection and is double insulated. The LS0816F/1 can be connected directly to a Makita Vacuum Cleaner. It cuts up to 305mm (12”) at 90 degrees and 215mm (8 ½”) at 45 degrees and is ideal for cutting baseboard, crown moulding installation, wooden floor installation and more. Maximum 47 degrees left and right mitre range and 47 degrees left and 2 degrees right maximum bevel range.


  • High cutting capacity and dust extraction rate
  • High dust extraction rate - Connects directly to Makita vacuum cleaner for a cleaner work area
  • Soft start feature for smooth start-ups
  • Double insulated
  • Carrying handle for easy transportation
  • Lock-off function
  • LED job light

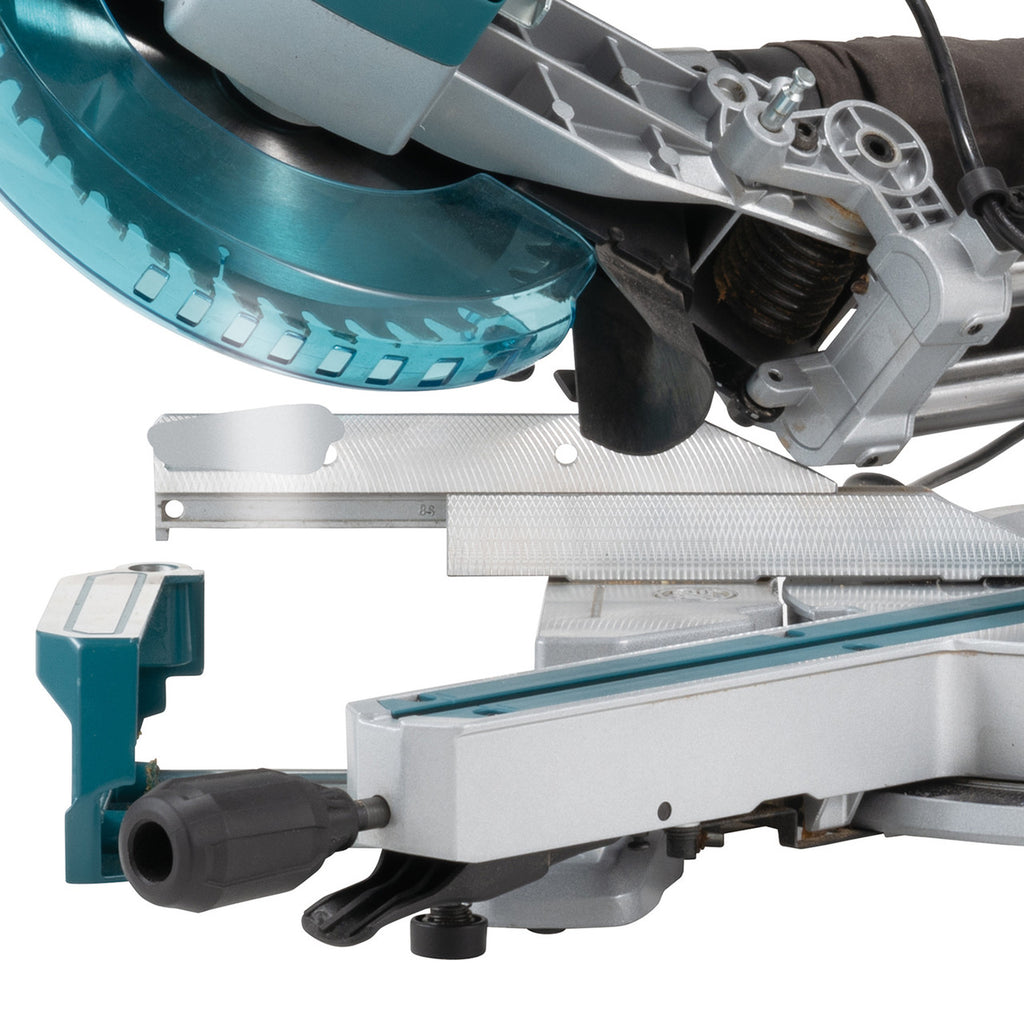

  • Sub-base can be pulled out for more stable cutting
  • Slide style sub fence (left side only)
  • Soft grip


  • Capacity 90°: 65 x 305 mm
  • Continuous Input Power: 1200 W
  • No load speed: 5000 min⁻¹
  • Capacity 45°: 65 x 215 mm
  • Capacity 45° left: 36 x 305 mm
  • Max. Bevel Range (Left): 47 / 2 º

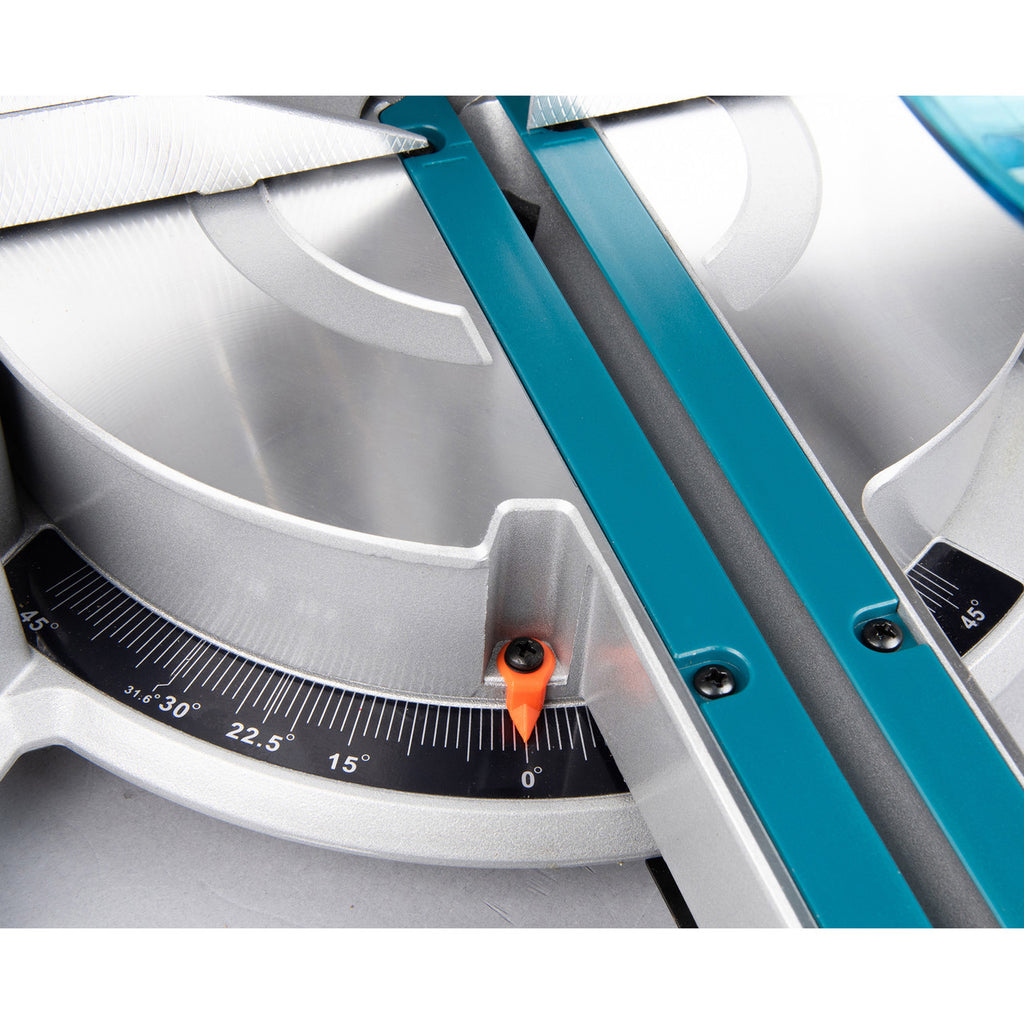

  • Max. Mitre Range (Left): 47 / 47 º
  • Blade Diameter: 216 mm
  • Bore Size (Arbor Diameter): 30 mm
  • Power Supply Cord: 2.0 m
  • Sound Power Level (LWA): 102 dB(A)
  • Sound Pressure Level (LpA): 91 dB(A)
  • Noise Uncertainty (K Factor): 3 dB(A)
  • Weight Without Cable (EPTA): 13.9 kg
  • Product Dimensions (L x W x H): 705 x 476 x 521 mm
