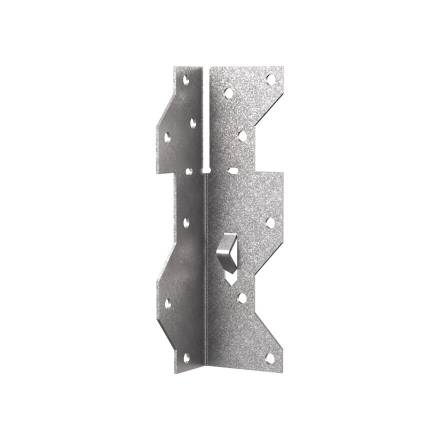

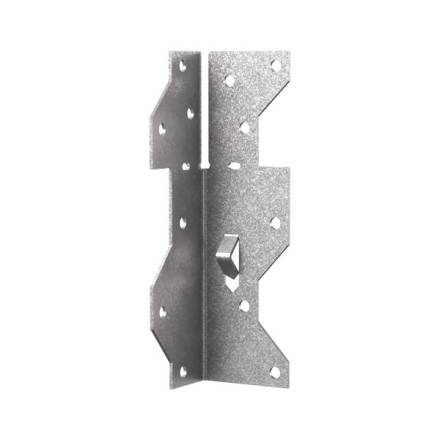

Simpson Strong-Tie A35E Framing Anchor - Pre-Galvanised Multi-Purpose Timber Connector

Summary

The Simpson Strong-Tie A35E is a multi-purpose framing anchor designed for secure wood-to-wood structural connections. Made from pre-galvanised mild steel with a 20um coating, it is suited to a wide range of timber framing applications under Service Class 2 (indoor) conditions. Its reversible, field-bendable design makes it one of the most versatile connectors available to structural framers and joiners.

Features

• Exclusive bending slot allows instant, accurate onsite bending for two-way and three-way timber connections
• Fully reversible design enables use in a wide variety of joint configurations
• Integrated speed prong temporarily holds the bracket in position, freeing hands for faster, easier nailing
• Pre-punched 3.8 mm holes ensure accurate fastener alignment
• CE marked and compliant with ETA-21/0482 for reliable, code-compliant structural performance
• Pre-galvanised mild steel construction with 20um coating for standard corrosion resistance

Specifications

• SKU: A35E
• Material: Pre-galvanised mild steel
• Coating: 20um pre-galvanised
• Service Class: SC2 (indoor)
• Fastener requirement: 3.75 x 30mm square twist nails
• Hole diameter: 3.8 mm (pre-punched)
• Certification: CE marked, ETA-21/0482
• Brand: Simpson Strong-Tie

What's Included

• Simpson Strong-Tie A35E Framing Anchor (single unit; also available in packs)
