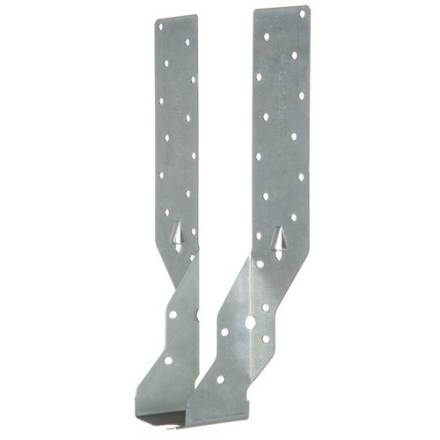

Simpson Strong-Tie JHA270/38 Height-Adjustable Joist Hanger 38mm

Summary

The Simpson Strong-Tie JHA270/38 is a height-adjustable joist hanger engineered to support 38mm wide solid sawn timber joists from carrying timber members. Manufactured from pre-galvanised mild steel, it is suitable for Service Class 2 indoor environments and carries CE marking, UKCA marking, and ETA certification. The short-leg (JHA270) design is ideal for standard floor and roof framing applications where a face-fix or wrap-over installation is required.

Features

• Height-adjustable strap accommodates joists at variable heights, with a range of 125-200mm
• Manufactured from pre-galvanised mild steel for durability and corrosion resistance
• Integrated speed-prong temporarily grips the hanger in position for single-handed alignment, eliminating the need to hold the hanger, joist and nail simultaneously
• Location tab (JHA270 range) enables precise alignment against the supporting timber face
• Wider strap increases surface area on the supporting member, allowing greater nail spacing and improving load performance at the critical hanger-to-support connection
• Minimum and maximum nailing schedules stamped directly onto the strap for clear on-site guidance
• Model number and width stamped into the seat for easy identification after installation
• Can be face-fixed or wrapped over the header to achieve maximum structural load capacity
• Holds CE marking, UKCA marking, and European Technical Assessment (ETA) approval

Specifications

• SKU: JHA270/38
• Hanger Width (A): 38mm
• Stirrup Height (B): 106mm
• Depth (C): 50mm
• Leg Width (D): 48.8mm
• Height (E): 241mm
• Steel Thickness (t): 0.9mm
• Adjustable Height Range: 125-200mm
• Material: Pre-galvanised mild steel
• Recommended Fastener: 3.75 x 30mm square twist nails
• Safe Working Load (Medium Term, C16): 4.2 kN
• Safe Working Load (Long Term, C16): 1.1 kN uplift
• Service Class: 2
• Certifications: CE, UKCA, ETA

What's Included

• 1 x Simpson Strong-Tie JHA270/38 Adjustable Joist Hanger
• Nails sold separately (3.75 x 30mm square twist nails recommended)
