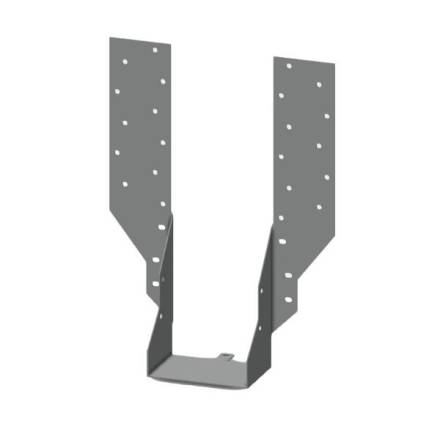

Simpson Strong-Tie JHA270/75 Adjustable Joist Hanger 75mm

Summary

The Simpson Strong-Tie JHA270/75 is a height-adjustable joist hanger designed for supporting 75mm solid sawn timber joists from timber members. Manufactured from pre-galvanised mild steel, it offers reliable corrosion resistance and structural performance in a wide range of residential and commercial timber frame applications. Its adjustable strap design allows flexible installation height, making it suitable for both new build and retrofit situations.

Features

• Height-adjustable strap allows flexible positioning to suit varying joist depths
• Pre-galvanised mild steel construction for corrosion resistance and long service life
• Wider strap provides greater surface area on the supporting timber, improving hanger-to-support connection performance
• Speed-prong holds the hanger in position during installation, freeing both hands for nailing
• Location tab on JHA270 range enables easier alignment of the hanger during fixing
• Minimum and maximum nailing schedules stamped directly into the strap for on-site reference
• Model number and joist size stamped into the seat for easy identification after installation
• Can be installed to the face of the carrying member or wrapped over the top for higher load performance
• European Technical Approval (ETA) for use in structural construction

Specifications

• SKU / Reference: JHA270/75
• Joist Width (A): 75 mm
• Overall Height (B): 242.5 mm
• Depth (C): 50 mm
• Leg Width (D): 48.8 mm
• Stirrup Height (E): 99.5 mm
• Thickness (t): 0.9 mm
• Header Nail Holes (dia 4): 22
• Joist Nail Holes (dia 6x4 Oblong): 4
• Weight: 0.185 kg
• Material: Pre-galvanised mild steel
• Published performance nail: 3.75 x 30mm square twist nails

What's Included

• 1 x JHA270/75 Adjustable Joist Hanger
