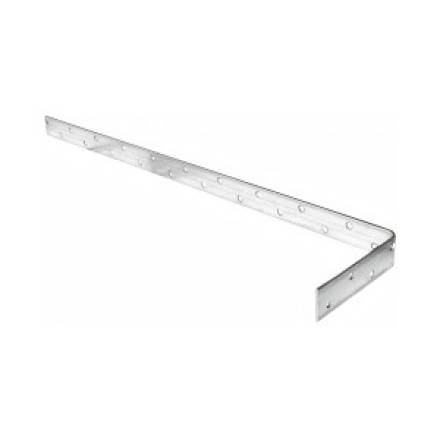

Simpson Strong-Tie L10B10 Bent Restraint Strap 1000 x 30 x 2.5mm

Summary

The Simpson Strong-Tie L10B10 is a pre-bent galvanised restraint strap from the L-series range, designed to connect timber joists and roof trusses to masonry walls in domestic and commercial construction. At 1000 mm overall length with a 100 mm bend, it suits standard floor and roof restraint details. Manufactured from 30 x 2.5mm galvanised steel, it delivers high load capacity in a slim, easily handled profile.

Features

• Pre-formed 100 mm bend for immediate use without site bending
• Heavy-duty galvanised steel construction for corrosion resistance in exposed or cavity conditions
• High safe working loads - up to 4 kN vertically and 8 kN horizontally
• Suitable for connecting joists and roof trusses to masonry structures
• Pre-punched fixing holes for standard nail or screw fixing
• Part of a coordinated Simpson Strong-Tie L-series range covering lengths from 600 mm to 1200 mm
• Complies with UK building regulations for structural restraint straps

Specifications

• Model: L10B10
• Overall Length: 1000 mm
• Bend Dimension: 100 mm
• Width: 30 mm
• Thickness: 2.5 mm
• Material: Galvanised steel
• Safe Working Load (Vertical): 4 kN
• Safe Working Load (Horizontal): 8 kN
• Finish: Hot-dip galvanised

What's Included

• 1 x Simpson Strong-Tie L10B10 Bent Restraint Strap
