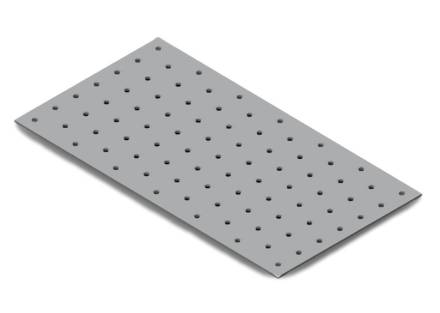

Simpson Strong-Tie NP15/140/260 Pre-Galvanised Nail Plate 140 x 260 x 1.5mm

Summary

The Simpson Strong-Tie NP15/140/260 is a pre-galvanised mild steel nail plate measuring 140mm wide x 260mm long x 1.5mm thick. Designed to connect two or more timber members in the same plane, it is a trusted structural connector for joinery, truss work, and general timber framing applications. The plate can be bent on site, giving installers flexibility across a wide range of connection details.

Features

• Pre-galvanised mild steel construction for corrosion resistance
• Suitable for jointing and connecting timber elements in the same plane
• Can be bent on site to suit a variety of application angles and configurations
• Installed in pairs for balanced load transfer
• 85 x dia 4.1mm fixing holes for use with 30mm square twist nails
• Versatile across construction, truss fabrication, and carpentry applications
• Available in a wide range of sizes; specials available to order
• Covered by Declaration of Performance: UK-DoP-h10/0005

Specifications

• Width (A): 140mm
• Length (B): 260mm
• Thickness: 1.5mm
• Fixing Holes: 85 x dia 4.1mm
• Material: Mild steel
• Finish: Pre-galvanised
• Part Code: NP15/140/260
• Declaration of Performance: UK-DoP-h10/0005

What's Included

• 1 x Simpson Strong-Tie NP15/140/260 Nail Plate (fixings not included - use 30mm square twist nails, installed in pairs)
