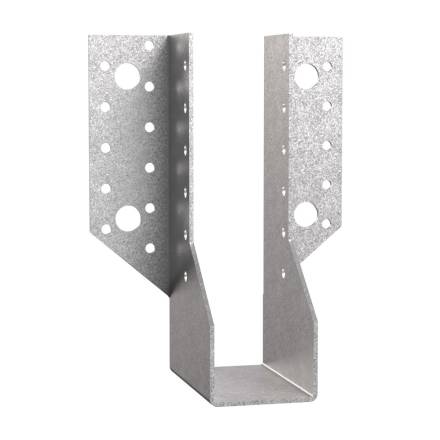

Simpson Strong-Tie SAE380/99/2 Heavy U Face Fix Joist Hanger 99mm - Box of 25

Summary

The Simpson Strong-Tie SAE380/99/2 is a heavy-duty face-fix U hanger engineered for applications demanding additional strength and load capacity. Designed to carry 99mm solid sawn timber joists, purlins and engineered timber members, it is suitable for use with a wide range of header members including solid timber, steel, masonry and I-joists. Supplied in a trade box of 25.

Features

• Heavy-duty SAE series face-fix hanger for high-load structural connections
• Accepts 99mm (nominal 100mm) width solid sawn timber joists and purlins
• Compatible with timber, steel, masonry and I-joist header members
• Nailed using square twist nails; bolt holes provided for 12mm fasteners into the face
• Hanger depth meets the 60% minimum of carried member depth to prevent rotation
• Pre-galvanised mild steel construction for corrosion resistance
• Quick and simple installation for efficient site use

Specifications

• Model: SAE380/99/2
• Seat Width: 96mm
• Joist Width: 99mm
• Hanger Height: 140.5mm
• Material Thickness: 2mm
• Material: Pre-galvanised mild steel
• Fixing: Square twist nails (20 nail positions); 12mm bolt holes to face
• Pack Quantity: 25

What's Included

• 25 x SAE380/99/2 Heavy U Face Fix Joist Hangers
