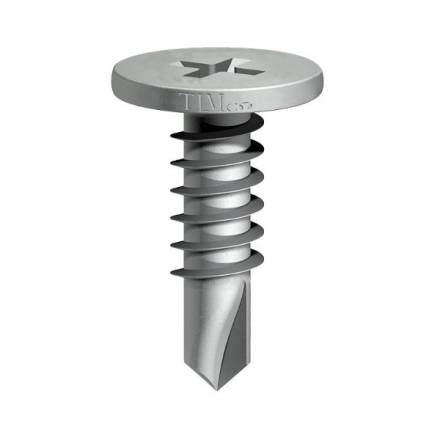

TIMCO Baypole Screws Wafer Flange PH2 Self-Drilling Point BZP 4.8 x 80mm (Box of 200)

Summary

The TIMCO 293Z Baypole Screw is a 4.8 x 80mm wafer flange head self-drilling tek screw finished in bright zinc plating. Specifically designed for joining PVCu window sections together, it is also widely used across door and window fabrication applications. The low-profile wafer head and self-drilling point make it a fast, reliable choice for trade window installers and fabricators.

Features

• Low-profile wafer flange head with flat underside - provides a large clamping area without an obstructive head
• Self-tapping thread for excellent grip in PVCu and metal sections
• V-Flute aids insertion and reduces installation torque
• Self-drilling (Tek) point - drills into metal up to 2.5mm thick without pre-drilling
• Phillips PH2 recess drive for compatibility with standard power drivers
• Made from carbon steel; bright zinc plated finish
• Withstands 240 hours of salt spray testing

Specifications

• SKU: 293Z
• Size: 4.8mm diameter x 80mm length
• Head type: Wafer flange
• Head diameter: 11mm
• Drive recess: Phillips PH2
• Thread type: Self-tapping with V-Flute
• Point type: Self-drilling (Tek-2)
• Max drilling capacity: 2.5mm steel
• Material: Carbon steel
• Finish: Bright zinc plated
• Pack quantity: 200

What's Included

• 200 x TIMCO 293Z Baypole Screws (4.8 x 80mm, Bright Zinc Plated)
