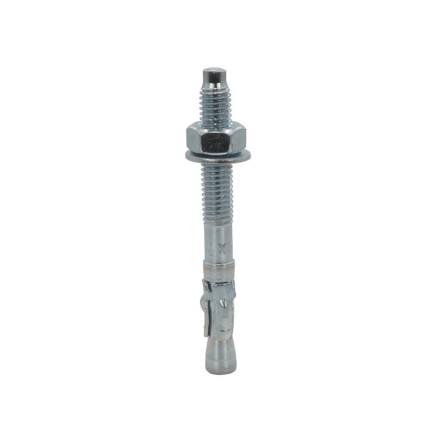

JCP BZP M8 x 65mm ETA Option 7 Throughbolt - Pack of 6

Summary

The JCP AWA08065 is a bright zinc plated M8 x 65mm throughbolt anchor designed for secure, through-fixing into non-cracked concrete. Supplied in a pack of six, it is a torque-controlled expansion anchor rated to ETA Option 7 and suited to concrete grades C20/25 to C50/60. It is an everyday choice for structural and general-purpose anchoring in commercial and construction applications.

Features

• ETA Option 7 approved, confirming performance in non-cracked concrete to recognised European Technical standards.
• Torque-controlled expansion mechanism provides consistent, reliable load transfer on tightening.
• The drill hole diameter matches the bolt diameter, allowing the hole to be drilled directly through the fixture and eliminating lengthy marking-out procedures.
• Bright zinc plated finish provides good corrosion resistance for internal and dry protected environments.
• Fully threaded shank allows flexible use across varying fixture thicknesses within the anchor's rated range.
• Suitable for use in concrete grades C20/25 to C50/60, covering the majority of structural concrete encountered on site.
• Supplied pre-assembled with nut and washer, ready for immediate installation.
• Compatible with standard 8mm SDS or rotary-hammer drill bits - no specialist tooling required.

Specifications

• Product Part Number: AWA08065
• Bag Part Number: JB8100
• Thread Size: M8
• Length: 65mm
• Drill Hole Diameter: 8mm
• Finish: Bright Zinc Plated
• Approval: ETA Option 7
• Substrate: Non-cracked concrete C20/25-C50/60
• Pack Quantity: 6

What's Included

• 6 x M8 x 65mm Bright Zinc Plated throughbolt anchors, each pre-assembled with nut and washer
