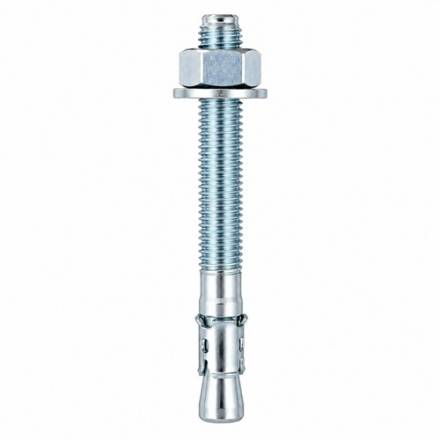

JCP ETA Option 7 Throughbolt BZP M10 x 90mm - Pack of 4

Summary

The JCP M10 x 90mm Bright Zinc Plated Throughbolt is a torque-controlled expansion anchor designed for secure fixings into solid concrete. As the ultimate through-fixing, the drill hole diameter matches the bolt diameter, making installation fast and repositioning unnecessary. Supplied in a pack of 4, it is ideal for trade professionals fixing structural and mechanical components into concrete substrates.

Features

• Through-fix design means the hole diameter equals the bolt diameter, eliminating the need to mark out, remove and reposition the fixture.
• Torque-controlled expansion mechanism ensures a reliable, consistent clamping force on tightening.
• Rated to ETA Option 7 for use in non-cracked concrete from C20/25 to C50/60 strength class.
• Bright zinc plated finish provides corrosion resistance suitable for internal and sheltered applications.
• Suitable for use with most solid building materials including concrete, stone, and dense masonry.
• Hexagonal nut and washer included, allowing direct installation with a standard spanner.
• Compact pack of 4 bolts suited to job-lot purchasing for structural fixing tasks.

Specifications

• Size: M10 x 90mm
• Finish: Bright Zinc Plated
• Material: Carbon steel
• Anchor Type: Torque-controlled throughbolt
• Performance Rating: ETA Option 7
• Concrete Grade: C20/25 to C50/60, non-cracked
• Product Part Number: AWA10090
• Pack Quantity: 4

What's Included

• 4 x M10 x 90mm Bright Zinc Plated JCP Throughbolts (with nut and washer per bolt)
