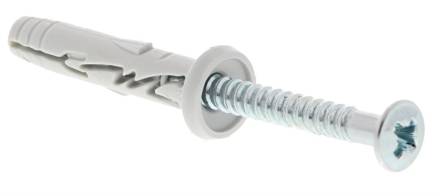

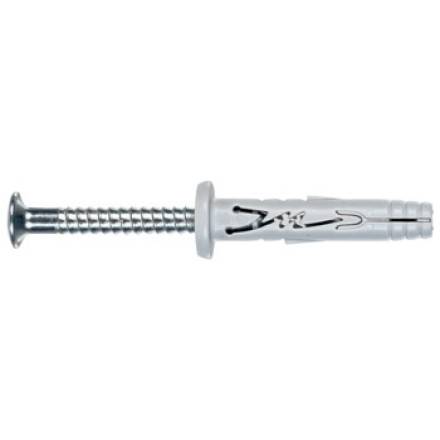

SPIT HIT-M CSK Zinc Plated Nylon Hammer Fixing M6 x 40mm

Summary

The SPIT HIT-M CSK is a countersunk nylon hammer-in anchor designed for quick and reliable fixing into concrete and solid masonry. Manufactured by ITWCP under the SPIT brand, it is the benchmark hammer-in anchor for electrical and drywall installation applications. ETA approved for consistent, safe performance in light-duty structural applications.

Features

• Countersunk head profile sits flush with the fixture surface for a neat finish
• Innovative pre-expansion collar design allows the anchor to be fully driven into the hole before expansion begins
• Drive nail action expands the polyamide sleeve on hammering or screw tightening, locking the anchor in place
• Polyamide 6 sleeve offers excellent resistance to weathering, ageing and rotting
• Good electrical insulation properties - suitable for electrical installation work
• High tensile and compressive strength with broad chemical resistance
• Zinc-plated screw (5 um) for corrosion protection; A4 stainless steel option available
• Operating temperature range: -20degC to +60degC
• ETA approved for verified load performance

Specifications

• Brand: SPIT (ITWCP)
• SKU: 050129
• Product: HIT-M CSK Zinc Plated Hammer Fixing
• Thread Diameter: M6
• Length: 40 mm
• Sleeve Material: Polyamide 6 (PA6)
• Screw Finish: Zinc plated 5 um
• Drill Diameter: 6 mm
• Approval: ETA approved

What's Included

• SPIT HIT-M CSK M6 x 40mm hammer fixings (quantity as supplied)
