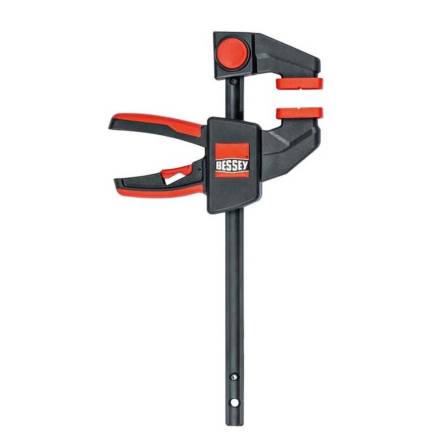

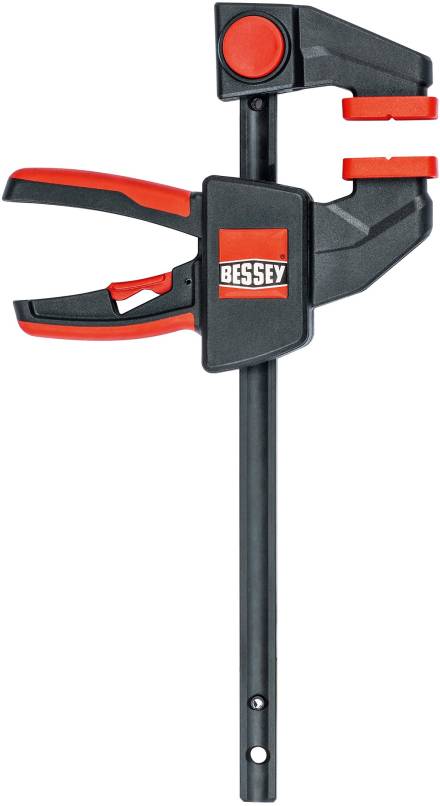

Bessey EZM15-6 EZ Series One-Handed Clamp 150mm Span 60mm Throat

Summary

The Bessey EZM15-6 is a one-handed quick-grip clamp from the EZ Series, offering a maximum clamping span of 150 mm and a throat depth of 60 mm. Designed for woodworking, metalworking, and general assembly tasks, it allows the user to clamp or spread workpieces securely with a single hand, leaving the other hand free to align or fasten. Its compact size and lightweight construction make it a practical everyday workshop and site tool.

Features

• One-handed operation via an ergonomically shaped two-component plastic handle with pump mechanism, delivering clamping force up to 750 N.
• Integrated release lever behind the rail allows quick sliding bar adjustment without changing grip.
• Tool-free conversion from clamping to spreading mode at the touch of a button on the upper section.
• Spreading width range of 125-270 mm broadens the range of applications beyond standard clamping.
• Protective caps fitted with a cross-prism profile for secure grip on round, pointed, and angular workpieces.
• Plastic housing over the grip mechanism keeps dust and chips out, protecting long-term functionality.
• Constructed from fibreglass-reinforced polyamide and hardened, tempered, and burnished steel for durability.
• Rail profile of 14 x 5mm provides a rigid, stable guide for consistent clamping pressure.

Specifications

• Model: EZM15-6
• Clamping Span: 150 mm
• Throat Depth (Projection): 60 mm
• Spreading Width: 125-270 mm
• Clamping Force: 750 N
• Rail Profile: 14 x 5mm
• Weight: 311 g

What's Included

• 1 x Bessey EZM15-6 one-handed clamp
