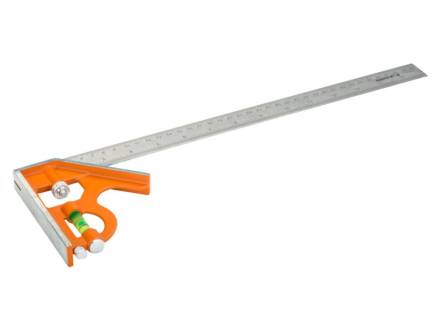

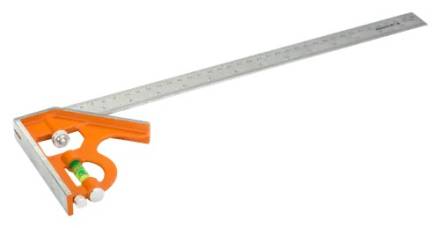

Bahco CS300 Sliding Combination Square with Metal Scriber 300mm / 12"

Summary

The Bahco CS300 is a 300 mm (12") sliding combination square aimed at trade and site use. Built with a die-cast body and a stainless steel industrial blade, it delivers reliable 45deg and 90deg marking in both metric and imperial. It is a practical everyday layout tool for carpenters, joiners, and general builders.

Features

• Sliding combination square format allows the blade to be repositioned for adjustable depth marking and scribing.
• Marks accurate 90deg and 45deg angles for layout, checking squareness, and transferring lines.
• Dual-sided blade graduations carry both metric and imperial markings for versatile use.
• Die-cast head body provides robust, knock-resistant construction suited to jobsite conditions.
• Stainless steel industrial blade resists corrosion and maintains edge accuracy.
• Built-in level bubble enables approximate levelling and plumb checks without a separate tool.
• Metal scriber stored neatly in the end of the handle, always ready for fine line marking.
• Locking mechanism secures the blade at any position along the rule for repeatable measurements.

Specifications

• Model: CS300
• Blade Length: 300 mm / 12"
• Angles: 45deg and 90deg
• Blade Material: Stainless steel
• Head/Body Material: Die-cast metal
• Graduations: Metric and imperial
• Includes Scriber: Yes (metal, stored in handle)
• Level Bubble: Built-in

What's Included

• 1 x Bahco CS300 Sliding Combination Square (300 mm / 12")
• 1 x Metal scriber (housed in handle)
