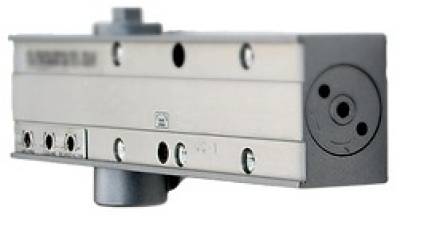

Boss Door Controls TS5.225 Architectural Slimline Overhead Door Closer Size 2-5 SSS

Summary

The Boss Door Controls TS5.225 is a high-quality, variable-power architectural slimline overhead door closer finished in satin stainless steel. Designed for public and high-traffic applications, it combines a low-profile slimline cover with robust rack-and-pinion mechanism and full adjustability. Suitable for both fire doors and general doorsets, it carries CE marking and Certifire approval.

Features

• Adjustable closing force EN Size 2-5, set by power shoe bracket position
• Adjustable sweep speed and latch speed for precise door control
• Adjustable backcheck function to protect door and frame on opening
• Adjustable delayed action for ease of passage
• Universal application - suitable for regular (Fig. 1), parallel arm (Fig. 6) and transom (Fig. 61) installations
• Non-handed - fits left- and right-hand doors without modification
• Maximum opening angle of 180deg
• CE marked to EN1154; included in successful fire test to EN1634; Certifire approved
• Satin stainless steel finish with matching architectural slimline cover

Specifications

• Model: TS5.225
• Finish: Satin Stainless Steel
• Closing Force: EN Size 2-5
• Max Door Width: 1250 mm
• Max Door Weight: 100 kg
• Body Length: 236 mm
• Body Width: 55 mm
• Body Depth: 38 mm
• Mechanism: Rack and Pinion
• Application: Fig. 1 / Fig. 6 / Fig. 61
• Opening Angle: 180deg
• Standards: EN1154, EN1634, Certifire approved

What's Included

• 1 x Boss TS5.225 door closer body (Satin Stainless Steel)
• Architectural slimline cover (Satin Stainless Steel)
• Fixing screws and installation template
