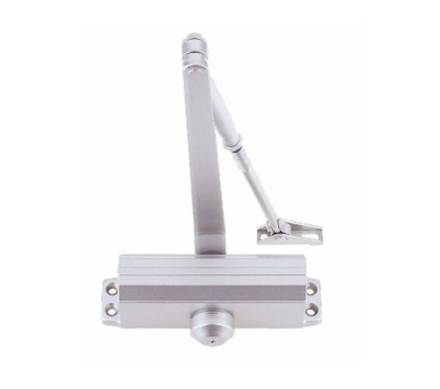

Zoo Hardware Delta ZDC003 Fixed Power Size 3 Overhead Door Closer - Silver

Summary

The Zoo Hardware Delta ZDC003 is a fixed power size 3 overhead door closer in a silver finish, supplied complete with a Fig 66 parallel arm (PA) bracket. Designed as a contract budget closer, it suits internal non-public doors such as office doors and store cupboards, and is fire-rated for use on timber fire doors. Its aluminium body and scissor steel arm deliver reliable, controlled closing performance in both commercial and residential settings.

Features

• Fixed power size 3 (EN3) - consistent closing force for doors up to 60 kg and 950 mm wide
• Aluminium body construction for durability and low weight
• Scissor-type connecting arm in steel with silver-finish coordination
• Closing and latching speed adjustment for controlled door operation
• Fire tested to BS EN 1634-1 - suitable for 30, 60, 90 and 120-minute timber fire doors
• Tested to BS EN 1154: 1997 for controlled door closing devices
• CE Marked (Certificate AD7999), UKCA Marked (Certificate AD7986) and CERTIFIRE Approved (Certificate CF6103)
• Silver finish provides a contemporary aesthetic to complement modern ironmongery schemes

Specifications

• SKU: ZDC003-SE
• Power Size: Fixed - Size 3 (EN3)
• Finish: Silver
• Body Material: Aluminium
• Arm Type: Scissor / Steel
• Maximum Door Weight: 60 kg
• Maximum Door Width: 950 mm
• Body Dimensions: 180 x 42 x 65mm (depth)
• Standards: BS EN 1154: 1997 / BS EN 1634-1
• Certifications: CE (AD7999), UKCA (AD7986), CERTIFIRE (CF6103)

What's Included

• 1 x ZDC003-SE door closer body (silver)
• 1 x Fig 66 parallel arm (PA) bracket
• Fixing screws
