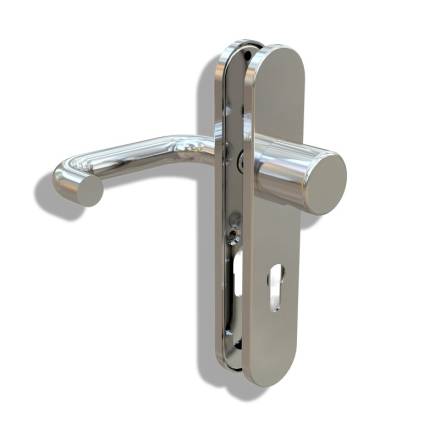

Abloy Futura Handle and Knob Set Long Plate Satin Stainless Steel 60-0119-SSS

Summary

The Abloy Futura 60-0119-SSS is a lever-on-long-plate handle and knob set in satin stainless steel, designed for use with Abloy and Progression mortice lock cases and electric lock case models including the EL520, EL160, 4922, 8120 and 8121. The internal lever is permanently active while the external knob is fixed, making this set ideal for controlled access and fire escape door applications. Manufactured from 19 mm round bar with a long plate featuring a cylinder cut-out on the external side.

Features

• Internal lever always active; external knob is fixed - suitable for controlled-access and escape routes
• Tested with the EL520 electromechanical lock; complies with Escape Standard BS EN 179
• Levers rated to 180 N resistance for heavy-duty durability
• Return-to-door (RTD) design approved for use on fire escape doors
• Manufactured from 19 mm stainless steel round bar for robust performance
• Long plate with cylinder cut-out on external plate for clean, integrated cylinder installation
• Stainless steel fixing plates with two pairs of holes to DIN or Scandinavian fixing standards
• 1.25 mm thick stainless steel tube prevents overload of the lock case - no support spring required
• Compatible with Abloy and Progression mortice lock cases and electric lock case models 8120, 8121, EL520, EL160 and 4922

Specifications

• SKU: 60-0119-SSS
• Finish: Satin Stainless Steel
• Bar Diameter: 19 mm round bar
• Plate Type: Long plate with cylinder cut-out (external)
• Internal Handle: Active lever
• External Handle: Fixed knob
• Standard: BS EN 179 (Escape)
• Lever Resistance: 180 N
• Fixing Plate: Stainless steel, DIN and Scandinavian hole centres
• Tube Thickness: 1.25 mm stainless steel
• Compatible Lock Cases: 8120, 8121, EL520, EL160, 4922

What's Included

• Internal lever handle on long plate (x1)
• External fixed knob on long plate with cylinder cut-out (x1)
• Relevant escutcheons, roses/plates and fixings
