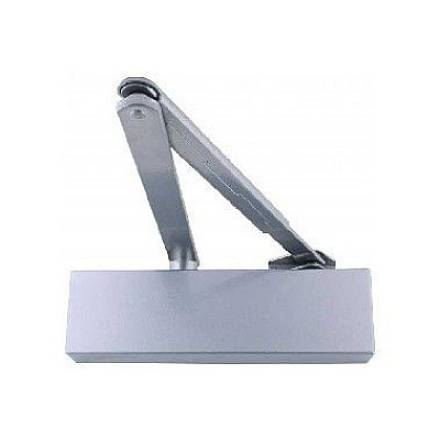

Synergy Hardware S150 SSN Door Closer EN 2-4 Semi Radius Cover Satin Stainless Steel

Summary

The Synergy Hardware S150 is a surface-mounted, rack and pinion overhead door closer with EN 2-4 power adjustable closing force, finished in satin stainless steel (SSN) and supplied with a semi radius cover. Designed for use on standard and fire-rated doors up to 1100mm wide and 80kg, it is suitable for commercial and residential applications requiring reliable, controlled door closing performance.

Features

• Cast body construction for robust, long-lasting performance in demanding environments.
• Rack and pinion mechanism with matching flat form armset for smooth, consistent operation.
• Adjustable closing speed and independent latch action for fine-tuned door control.
• EN 2-4 power adjustable by template, accommodating a wide range of door sizes and weights up to 80kg.
• Universal application - compatible with Fig. 1, Fig. 6, and Fig. 61 mounting configurations.
• Semi radius cover (SR) in genuine satin stainless steel - not a painted or coated finish.
• Fully tested and certificated for use on latched and unlatched fire doors.
• UKCA, CE, and Certifire approved, satisfying fire door compliance requirements.
• High corrosion protection, making the closer suitable for high-traffic or coastal environments.

Specifications

• Model: S150
• Finish: SSN (Satin Stainless Steel)
• Cover Style: Semi Radius (.SR)
• Power Size: EN 2-4 (adjustable by template)
• Max Door Width: 1100mm
• Max Door Weight: 80kg
• Mechanism Type: Rack and Pinion
• Mounting: Fig. 1 (door-mounted, pull side), Fig. 6, Fig. 61
• Standard: BS EN 1154 / EN 1154:1996 A1:2002/AC:2006
• Approvals: UKCA, CE, Certifire

What's Included

• S150 door closer mechanism (SSN finish, semi radius cover)
• PA (parallel arm / template) bracket
• Fixing template
• Fixings pack
