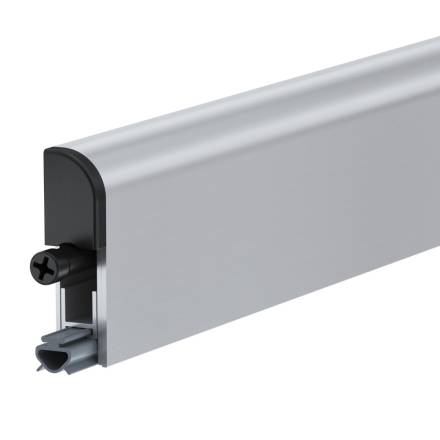

FIRESTOP Applic 38dB Face Fixed Automatic Drop Down Seal 1030mm SAA

Summary

The FIRESTOP Applic 38 is an automatic drop down door seal designed for face-fixed installation at the base of doors. Activated by the closing action of the door, it forms an effective barrier against fire, smoke, noise, draught, light and insects - dropping only when the door is fully closed. Suitable for use on fire doors, it is acoustically and fire tested to recognised European standards.

Features

• Automatic activation: seal drops on door closing and retracts on opening
• Face-fixed (surface-mounted) installation to the door face or frame
• Effective barrier against fire, smoke, noise, light, draught and insects
• Acoustic rating of up to 38dB Rw, tested to DIN EN ISO 10140-2
• Fire tested to BS EN 1634-1 and smoke tested to BS EN 1634-3:2004
• Can be cut down by up to 125mm to suit the opening
• Suitable for sloping floor surfaces
• Maximum drop of 15mm
• Profile dimensions: 13mm wide x 49mm high
• Satin anodised aluminium finish

Specifications

• Brand: FIRESTOP
• Model: Applic 38
• Fixing Method: Face Fixed (surface mounted)
• Seal Length: 1030mm
• Adjustable Length: Can be cut by up to 125mm
• Maximum Drop: 15mm
• Acoustic Rating: Up to 38dB Rw
• Acoustic Test Standard: DIN EN ISO 10140-2
• Fire Test Standard: BS EN 1634-1
• Smoke Test Standard: BS EN 1634-3:2004
• Finish: Satin Anodised Aluminium
• Profile: 13mm (W) x 49mm (H)

What's Included

• 1 x FIRESTOP Applic 38 face-fixed drop down seal (1030mm)
• Fixing screws
