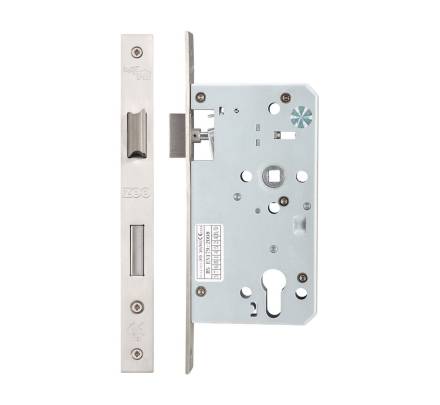

Zoo Hardware DIN Escape Lock Square Profile Satin Stainless Steel 60mm Backset

Summary

The Zoo Hardware ZDL7260ESC-S-SS is a DIN-format mortice escape lock designed for use in public, commercial and fire-rated door applications. With a 60mm backset and 72mm centre-to-centre spacing, it meets BS EN 179:2008 emergency egress requirements and is CE marked for use on 30 and 60 minute timber fire doors. The square-profile forend and satin stainless steel finish make it well suited to contemporary architectural ironmongery schemes.

Features

• Complies with BS EN 179:2008 emergency escape hardware standard
• CE1121 certified and Certifire CF850 fire tested for use on FD30 and FD60 timber fire doors
• Square profile forend in Grade 304 stainless steel
• Grade 304 stainless steel latchbolt and deadbolt for corrosion resistance
• Anti-rattle strike for quiet, positive door closure
• Grip-tight follower for reliable lever operation
• Easily handed - no adjustment required for left or right-hand doors
• Pull-force tested fixing screws to 1000N
• Compatible levers include: FB030, VS030, VS070, VS080, ZAA030, ZAA080, ZCS030, ZCS080, ZCS2030, ZCS2080, ZG4S030, ZPS030, ZPS080

Specifications

• SKU: ZDL7260ESC-S-SS
• Backset: 60mm
• Centre-to-Centre (c/c): 72mm
• Forend Profile: Square
• Forend Width: 22mm
• Forend Material: Grade 304 Stainless Steel
• Latchbolt and Deadbolt Material: Grade 304 Stainless Steel
• Finish: Satin Stainless Steel
• Standard: BS EN 179:2008, BS EN 12209:2003 Grade 3
• Fire Rating: CE1121 / Certifire CF850 - FD30 and FD60 timber fire doors

What's Included

• 1 x DIN Escape Lock body (ZDL7260ESC-S-SS)
• Anti-rattle strike plate
• Fixing screws
