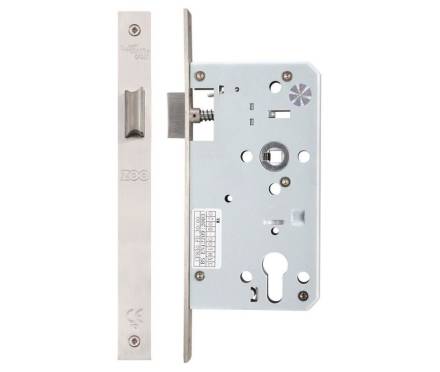

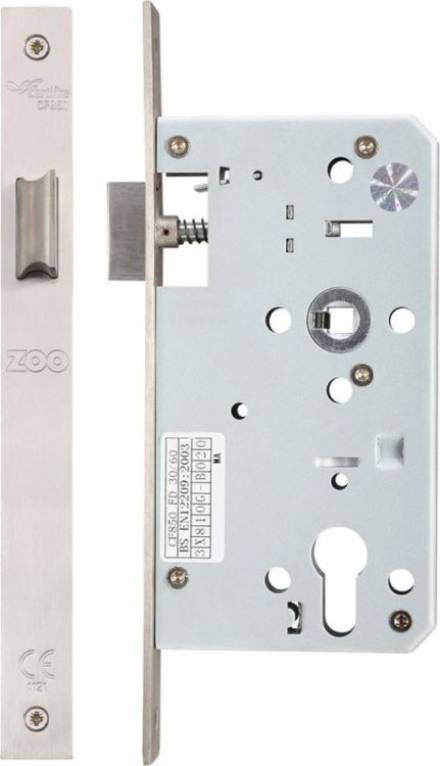

Zoo Hardware Vier DIN Mortice Latch 60mm Backset Satin Stainless Steel

Summary

The Zoo Hardware Vier ZDL0060LSS is a DIN European standard mortice latch case with a 60mm backset, finished in satin stainless steel. Designed for both residential and commercial door applications, it is fire-rated for use on timber and steel fire doors and meets Grade 3 performance requirements. It forms part of Zoo Hardware's ZDL range of DIN locks and accessories.

Features

• DIN European standard latch case for lever handle operation
• BS EN 12209:2003 Grade 3 rated for reliable performance
• CE marked (CE2812) and Certifire approved (CF850) - rated FD30/60 and FD120/240
• Grade 304 stainless steel forend and latch bolt for corrosion resistance
• Square profile 22mm forend
• Grip-tight follower for secure handle engagement
• 72mm lock centres
• Supplied with fixings; rebate kit ZDR01 available separately for double doors
• Compatible with Euro Profile cylinder lock barrels

Specifications

• SKU: ZDL0060LSS
• Backset: 60mm
• Case Size: 90mm
• Forend: 22 x 235mm, Square profile
• Case Dimensions: 90 x 165mm
• Lock Centres: 72mm
• Material: Grade 304 Stainless Steel
• Finish: Satin Stainless Steel
• Standard: BS EN 12209:2003 Grade 3, CE2812, CF850 Certifire
• Fire Rating: FD30/60/120/240

What's Included

• 1 x DIN mortice latch case (ZDL0060LSS)
• Fixing screws
