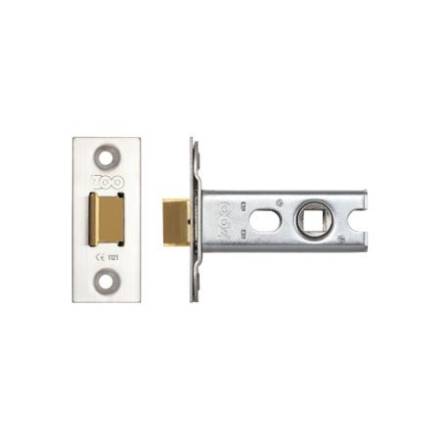

Zoo Hardware ZTLKA64 64mm Architectural Bolt-Through Tubular Latch - Satin Stainless Steel

Summary

The Zoo Hardware ZTLKA64 is a 64mm (2-1/2") architectural-grade, double-sprung, bolt-through tubular mortice latch finished in satin stainless steel. Designed for demanding residential and light commercial applications, it suits both lever handles and door knobs and is compatible with bolt-through rose furniture. Its guided latch bolt and heavy-duty double spring ensure consistent, reliable operation over an extended service life.

Features

• Architectural (double-sprung) quality - suitable for high-use and heavily trafficked doors
• Bolt-through body: holes either side of the spindle hole accept the through-bolts supplied with lever-on-rose furniture
• Guided latch bolt for smooth, accurate engagement every time
• 45deg short-travel latch for safe, quiet closing action
• Fully reversible - installs on left- or right-hand opening doors
• Satin stainless steel forend and adjustable strike plate included
• Compliant with BS EN 1634-1 (fire door suitability)
• 10-year mechanical guarantee

Specifications

• Product Code: ZTLKA64
• Finish: Satin Stainless Steel
• Overall Body Length: 64mm (2-1/2")
• Body Dimensions: 15 x 22 x 64mm
• Backset: 44.5mm
• Latch Travel: 45deg
• Forend Material: Stainless Steel
• Suitable For: Lever handles and door knobs; bolt-through rose furniture

What's Included

• 1 x ZTLKA64 tubular latch body
• Satin stainless steel forend
• Adjustable strike plate
