Summary

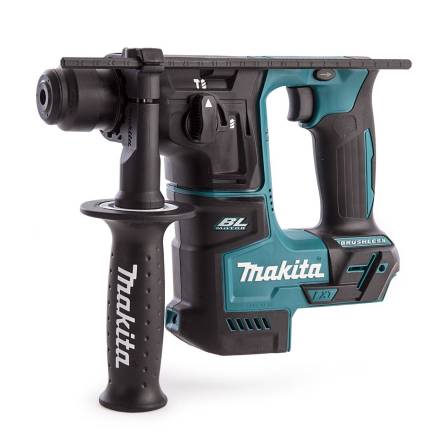

The Makita DHR171Z is a compact, cordless 18V LXT brushless SDS+ rotary hammer drill designed for drilling into concrete, masonry, steel, and timber. Its slim 273 mm profile and lightweight construction make it particularly well suited to overhead work and confined spaces. Supplied as body only, it is compatible with the full range of Makita 18V LXT Li-ion batteries.
Features
Electronically controlled brushless motor delivers up to 50% longer run time per charge compared to an equivalent brushed motor.
Two operating modes - Rotation Only and Hammering with Rotation - cover drilling into concrete, masonry, metal, and timber.
One-touch sliding chuck allows fast, tool-free SDS+ bit installation and removal.
Variable speed trigger with forward and reverse rotation provides precise control across applications.
Vibration-absorbing handle moves independently of the motor and hammer mechanism, reducing operator fatigue during extended use.
Built-in LED job light illuminates the work area when the trigger is engaged.
Electric brake stops bit rotation rapidly when the trigger is released, improving safety and control.
Compact 273 mm overall length and 2.8 kg working weight (with BL1840 or larger battery) minimise strain overhead.
Specifications
Voltage: 18V LXT Li-ion
Shank: SDS+
Impact Energy: 1.2 J (EPTA 05/2009)
No Load Speed: 0-680 rpm
Impacts per Minute: 0-4,800 ipm
Capacity - Concrete: 17 mm
Capacity - Steel: 10 mm
Capacity - Wood: 13 mm
Overall Length: 273 mm
Net Weight (body only): 2.1 kg
Noise Sound Pressure: 86 dB(A)
Noise Sound Power: 97 dB(A)
Vibration - Hammer Drilling: 9.0 m/s2
Vibration - Drilling into Metal: 2.5 m/s2
What's Included
DHR171Z body only (no battery or charger)
Side handle
Depth stop
