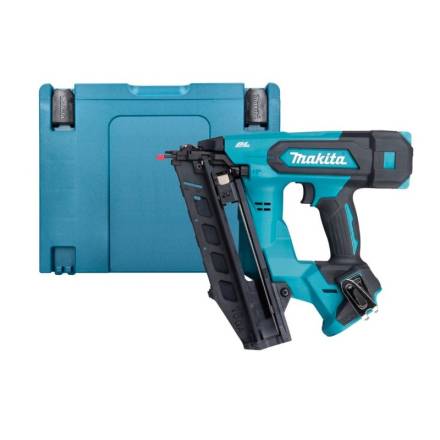

Makita DBN610ZJ 18V LXT Brushless 16G Angled Finishing Nailer Body Only in Case

Summary

The Makita DBN610ZJ is an 18V LXT cordless brushless angled finishing nailer designed for second-fix interior work including trim, skirting boards, architraves, and cabinetry. Its pneumatic spring drive mechanism delivers a feel and response closely matched to a traditional pneumatic nailer, without the need for a compressor or hose. Supplied body-only in a Makpac carry case, it is compatible with the full Makita 18V LXT battery range.

Features

• Pneumatic spring drive system delivers a pneumatic-like firing action for responsive, consistent nail placement.
• Brushless motor provides extended runtime, reduced maintenance, and longer tool life compared to brushed alternatives.
• Fires 16-gauge angled finish nails from 32 mm to 64 mm at a magazine angle of 20deg.
• Slim nose design improves line-of-sight accuracy, particularly in restricted or tight working areas.
• Tool-less jam clearing allows rapid removal of misfired nails without interrupting workflow.
• Depth adjustment dial gives precise control over nail countersink depth for a clean finish on different materials.
• Anti-dry-fire mechanism locks the contact arm when approximately 6-9 nails remain, protecting both the tool and workpiece surface.
• Built-in LED work light illuminates the nail zone in poorly lit conditions.
• eXtreme Protection Technology (XPT) provides enhanced resistance to dust and water ingress for use in demanding site environments.
• Magazine window allows at-a-glance checking of remaining nail quantity without opening the tool.

Specifications

• Voltage: 18V (LXT)
• Fastener Gauge: 16 Ga
• Nail Length: 32-64 mm
• Nail Diameter: 1.6 mm
• Magazine Angle: 20deg
• Magazine Capacity: 110 nails
• Tool Weight (bare): 2.7 kg
• Tool Weight (with battery): 3.0-3.3 kg
• Dimensions (L x W x H): 288 x 116 x 325mm
• Sound Power Level (LWA): 94 dB(A)
• Sound Pressure Level (LpA): 83 dB(A)
• Vibration Level: <= 2.5 m/s2
• Battery Chemistry: Li-ion
• Warranty: 12 months

What's Included

• Makita DBN610ZJ 18V angled finishing nailer (body only)
• Belt hook
• Makpac Type 4 carry case
• Battery and charger not included
