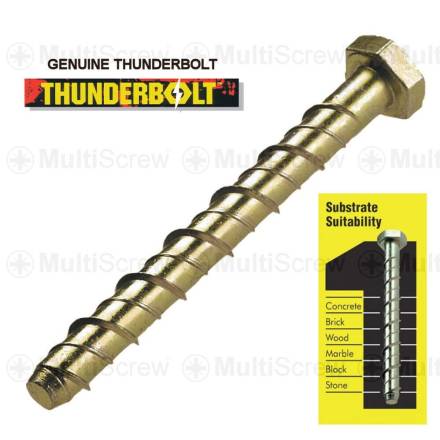

Thunderbolt All-Purpose Anchor Hex Head Zinc Yellow Passivated M8 x 100mm

Summary

The Thunderbolt M8 x 100mm Hex Head anchor is the original and best-selling general-purpose all-metal masonry anchor, suitable for a wide range of construction substrates. It is a one-piece, non-expansion anchor requiring no wall plug or resin, making it an excellent choice for close-to-edge fixing applications. Supplied with a zinc and yellow passivated finish for enhanced corrosion resistance.

Features

• One-piece, non-expansion anchor that does not require a wall plug or resin for installation.
• Unique patented concave thread design self-taps its own thread directly into the substrate, which acts as the nut to the bolt.
• Provides rapid, low-torque installation with exceptional pull-out resistance.
• Suitable for use in concrete, concrete block, brick, stone, and wood.
• Ideal for close-to-edge fixing applications due to its non-expansion design, which places no stress on the substrate.
• Hexagon head for standard spanner or socket installation.
• Fully removable, making it suitable for temporary fixings or maintenance applications.
• Zinc and yellow passivated finish provides resistance to corrosion.

Specifications

• Brand: Thunderbolt
• SKU / Article Number: V35157
• Thread Size: M8
• Length: 100mm
• Head Type: Hexagon
• Finish: Zinc and Yellow Passivated
• Anchor Type: Non-expansion, all-metal, one-piece

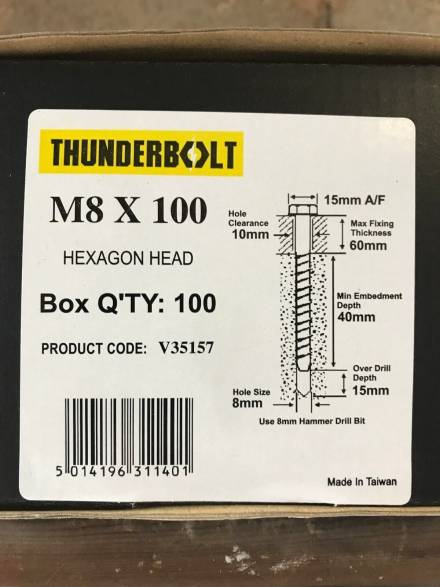

• Required Drill Bit: 8mm masonry drill bit
• Fixture Clearance Hole: 10mm
• Recommended Over-Drill Depth: 20mm beyond required embedment

What's Included

• Thunderbolt M8 x 100mm Hex Head anchors (quantity per pack as selected)
