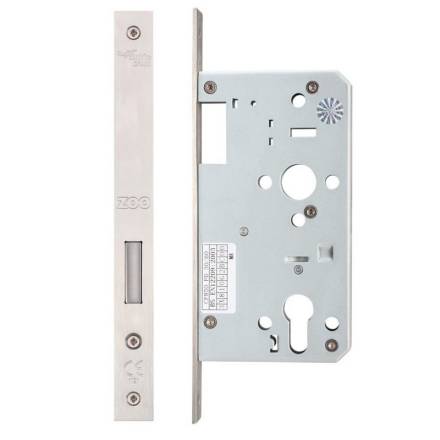

Zoo Hardware DIN Euro Deadlock - 60mm Backset, Satin Stainless Steel

Summary

The Zoo Hardware ZDL0060SS is a DIN standard Euro profile deadlock designed for commercial door applications where precision and fire-rated performance are essential. Finished in satin stainless steel, it is part of the ZDL range manufactured for Zoo Hardware under the Vier brand and is suitable for use on timber and steel fire doors. Certified to BS EN 12209:2003 Grade 3 and Certifire approved for 30 and 60 minute fire doors.

Features

• DIN European standard Euro profile deadlock - popular in commercial environments where doors are pre-prepared for faster assembly
• Grade 304 stainless steel double-throw deadbolt for secure, reliable locking
• 22mm Grade 304 stainless steel square profile forend
• Grip tight follower for smooth operation
• CE marked and Certifire approved (CF850) for 30 and 60 minute fire-rated timber doors
• Tested for use on 30, 60, 90 and 120 minute timber fire doors, and 30-240 minute steel fire doors
• For use with Euro profile cylinder lock barrels
• Rebate kit (ZDR01SS) available separately for double/rebated doors
• Supplied complete with fixings and strike plate; fitting template included

Specifications

• SKU: ZDL0060SS
• Backset: 60mm
• Case Size: 90mm
• Forend: 22 x 235mm
• Centre-to-Centre: 72mm
• Forend Material: Grade 304 Stainless Steel
• Finish: Satin Stainless Steel
• Profile: Square forend
• Standard: BS EN 12209:2003 Grade 3
• Certification: CE Marked, Certifire CF850 (FD30/60)

What's Included

• 1 x DIN Euro deadlock case (ZDL0060SS)
• Strike plate
• Fitting fixings
• Fitting template
