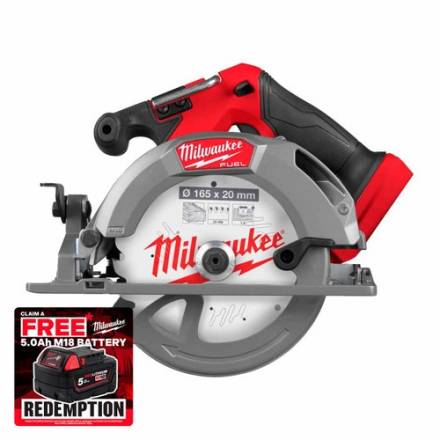

Milwaukee M18 FUEL M18CCS55-0 18V Brushless 165mm Cordless Circular Saw (Body Only)

Summary

The Milwaukee M18 FUEL M18CCS55-0 is an 18V cordless circular saw designed for trade professionals requiring fast, accurate rip and mitre cuts in timber. Driven by Milwaukee's brushless POWERSTATE motor, it delivers class-leading cutting speed and runtime. Supplied as a body-only tool, it is compatible with all Milwaukee M18 REDLITHIUM-ION battery packs.

Features

• Milwaukee-designed brushless POWERSTATE motor delivers up to 2x more cuts per battery charge and up to 3x longer motor life compared to brushed alternatives.
• REDLINK PLUS intelligence system provides advanced digital overload protection for both tool and battery, and enhances performance under load.
• Magnesium upper and lower blade guards offer best-in-class durability and impact resistance.
• Magnesium base shoe reduces overall tool weight while maximising rigidity and durability.
• Integrated dust blower keeps the cut line clear for accurate tracking throughout the cut.
• 50deg maximum bevel capacity enables a wide range of angled cutting applications on site.
• Electric brake engages when the trigger is released, stopping the blade rapidly for safe and efficient working.
• Hang hook allows convenient and safe storage of the tool between cuts.
• LED light illuminates the work area for improved visibility in low-light conditions.
• Compatible with the full Milwaukee M18 battery platform - works with all M18 REDLITHIUM-ION packs.

Specifications

• Model: M18CCS55-0
• Voltage: 18V
• Blade Diameter: 165mm
• Bore Size: 15.87mm
• No-Load Speed: 5,000 rpm
• Max Cutting Depth at 90deg: 55mm
• Max Cutting Depth at 45deg: 41mm
• Max Bevel Capacity: 50deg
• Motor: Brushless POWERSTATE
• Weight (without battery): 3.2kg
• Sound Pressure Level: 80.8 dB(A)
• Sound Power Level: 91.8 dB(A)
• Vibration (sawing wood): 2.5 m/s2

What's Included

• Milwaukee M18CCS55-0 circular saw body
• 165 x 15.87mm x 24T circular saw blade
• Parallel guide
• Allen key
• Hanging hook
